Godot Pixelmatch

GDScript port of pixelmatch the smallest, simplest and fastest JavaScript pixel-level image comparison library, originally created to compare screenshots in tests.

Still small and simple, but much slower than the original.

Features accurate anti-aliased pixels detection and perceptual color difference metrics.

The original project was inspired by Resemble.js and Blink-diff. Unlike pixelmatch, which works on raw typed arrays, this port works on Images using get_pixelv() and set_pixelv().

const Pixelmatch := preload("res://addons/pixelmatch/pixelmatch.gd")

var matcher := Pixelmatch.new()
matcher.threshold = 0.1
matcher.diff(img1, img2, diff, 800, 600)

Implements ideas from the following papers:

• Measuring perceived color difference using YIQ NTSC transmission color space in mobile applications (2010, Yuriy Kotsarenko, Fernando Ramos)
• Anti-aliased pixel and intensity slope detector (2009, Vytautas Vyšniauskas)

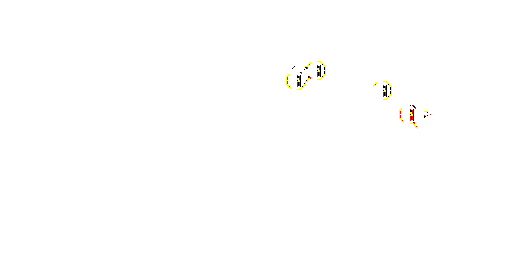

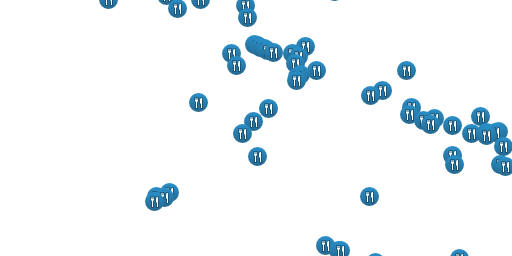

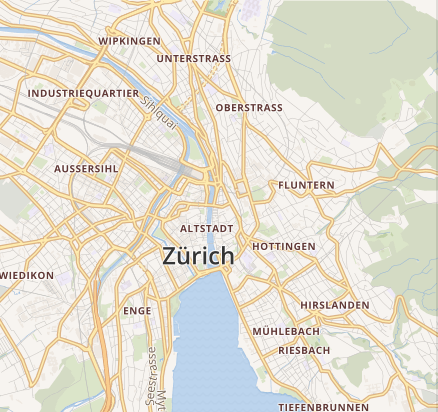

Example output

expected	actual	diff

API

diff(img1: Image, img2: Image, output: Image|null, width: int, height: int) -> int

• img1, img2 — Images to compare. Note: image dimensions must be equal.
• output — Image to write the diff to, or null if you don't need a diff image.
• width, height — Width and height of the images. Note that all three images need to have the same dimensions.

A pixelmatch instance has the following properties:

• threshold — Matching threshold, ranges from 0 to 1. Smaller values make the comparison more sensitive. 0.1 by default.
• include_aa — If true, disables detecting and ignoring anti-aliased pixels. false by default.
• alpha — Blending factor of unchanged pixels in the diff output. Ranges from 0 for pure white to 1 for original brightness. 0.1 by default.
• aa_color — The color of anti-aliased pixels in the diff output. Color(255, 255, 0) by default.
• diff_color — The color of differing pixels in the diff output. Color(255, 0, 0) by default.
• diff_color_alt — An alternative color to use for dark on light differences to differentiate between "added" and "removed" parts. If not provided, all differing pixels use the color specified by diff_color. null by default.
• diff_mask — Draw the diff over a transparent background (a mask), rather than over the original image. Will not draw anti-aliased pixels (if detected).

Compares two images, writes the output diff and returns the number of mismatched pixels. Returns -1 if there was an error.

Example usage

extends Node

const Pixelmatch = preload("res://addons/pixelmatch/pixelmatch.gd")

func _ready():
	var img1: Image = load("res://img1.png").get_data()
	var img2: Image = load("res://img2.png").get_data()
	var width: int = img1.get_width()
	var height: int = img2.get_height()

	var diff = Image.create(width, height, false, Image.FORMAT_RGBA8)

	var matcher = Pixelmatch.new()
	matcher.threshold = 0.1
	matcher.diff(img1, img2, diff, width, height)

	diff.save_png("res://diff.png")

See the test.gd file for more usage examples.

Install

Install from the asset library: .

Or install with gd-plug:

# plug.gd
func _plugging():
       plug("lihop/godot-pixelmatch", {tag = "v2.0.0", include = ["addons/pixelmatch"]})

godot --no-window -s plug.gd install

Testing

If you want to run the tests locally you will need to install the Gut addon. This can be done through the asset-lib or by using gd-plug.

godot --no-window -s plug.gd install

Changelog
