Card Framework

Card Framework is a lightweight, extensible toolkit for creating 2D card games in the Godot Engine. Whether you're building a classic Solitaire, a TCG (Trading Card Game), or a deck-building roguelike, the Card Framework provides flexible card handling and UI structures to speed up development. Use this framework as a starting point for card-based gameplay in any 2D project.

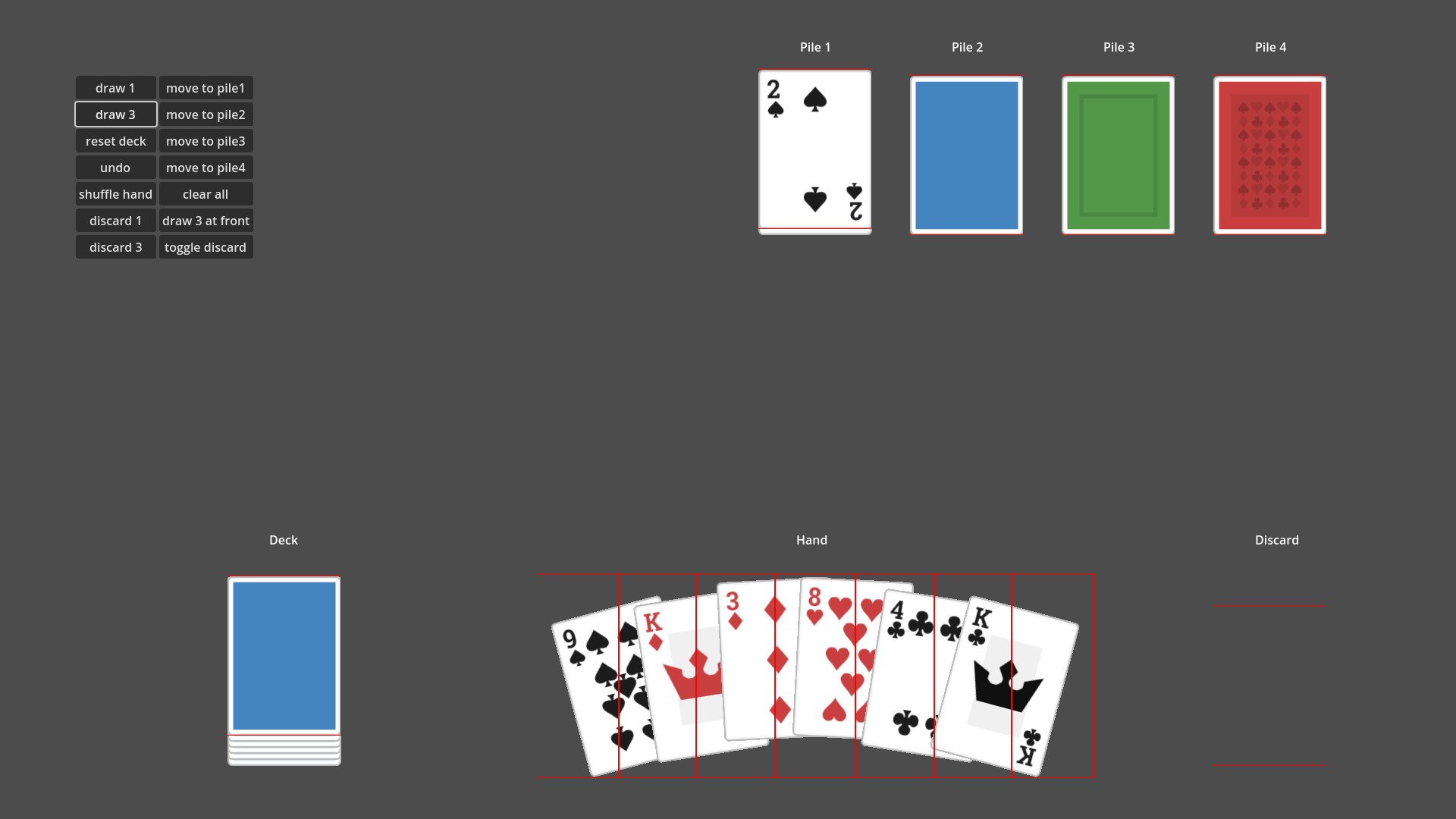

Example1 Screenshot

Freecell Screenshot

Features

Card Creation & Management: Easily define and instantiate cards with custom attributes or visuals.
Drag-and-Drop Interactions: Built-in 2D control nodes to handle common card movements.
Card Container: Create and manage various modules like Piles or Hands, enabling flexible card organization in different game scenarios.
Scalable Architecture: Extend or modify the base classes to suit various genres (Solitaire, TCG, etc.).
Lightweight & Modular: Include only the parts you need, so it won't bloat your project.

Card Framework

Installation

Download from Godot Editor’s AssetLib
- Open Godot and navigate to the AssetLib tab.
- Search for Card Framework and download the latest version.
Manual Download to addons/card-framework
- Alternatively, download the latest version directly.
- Copy or move the contents to your project under res://addons/card-framework.
Check Usage Examples
- The folders example1 and freecell demonstrate usage in real scenarios.
- If you don’t need them, you can remove those folders from your project.

Getting Started

Instantiate the Card Manager
- In any scene that needs card functionality, instantiate the scene at card-framework/card_manager.tscn.
Assign a CardFactory
- Under the CardManager, assign the CardFactory class to use for card creation.
- By default, the framework provides a JsonCardFactory that loads card data from JSON files (recommended for most use cases).
- If you need custom card creation logic (e.g., loading from a database, procedural generation, or supporting non-JSON formats), you can create your own factory by extending the base CardFactory class and assign it here.
- See the CardFactory section for details on implementing a custom factory.

  Note:
  Steps 3, 4, and 5 below apply only if you are using JsonCardFactory.
Organize Card Images
- Save the images for your card fronts (and other card-related art) inside the designated card_asset_dir folder.
Prepare Card Metadata
- Create JSON files that describe each card’s metadata (e.g., name, rank, suit, custom properties), and place them into the card_info_dir folder. See example
Set Up the JsonCardFactory
- In the Inspector for your CardManager node, configure:
  - default_card_scene: The default card scene.
  - card_asset_dir: The folder containing your card images.
  - card_info_dir: The folder containing your JSON metadata.
  - back_image: The texture to use for the card’s backside.
Set Up the CardManager
- In the Inspector for your CardManager node, configure:
  - card_size: The default width/height for each card.
Add Card Containers
- Within CardManager, instantiate and arrange Pile, Hand, or any custom CardContainer nodes you’ve created.
- Use these containers to organize the deck, discard piles, player hands, or any other card layout required by your game.

Classes

CardManager

The Root Node for the Card Framework.

Oversees all card-related nodes, manages card factories, and coordinates card creation, movement, and container relationships.

Properties

Type	Name	Default	Description
Vector2	`card_size`	(150, 210)	The default size (width × height) for each card.
PackedScene	`card_factory_scene`	null	The scene responsible for spawning new card objects. (Required)
bool	`debug_mode`	false	This is a debugging option that provides the reference rect of the sensor in the `card_container`.

Methods

Method Signature	Description
func undo() -> void	Reverts the last recorded move in the history.
func reset_history() -> void	Clears all move records from the history.

⬆ Back to Top

Card

A Node representing a single playing card.

Stores information about name, card image, or custom data.

Properties

Type	Name	Default	Description
String	`card_name`	null	The name of the card.
Vector2	`card_size`	(150, 210)	The width/height of the card.
Texture2D	`front_image`	null	The texture used for the card’s front face.
Texture2D	`back_image`	null	The texture used for the card’s back face.
bool	`show_front`	true	Determines whether the front face is shown (`true`) or the back face (`false`).
int	`moving_speed`	2000	The speed at which the card moves during animations or transitions.
bool	`can_be_interacted_with`	true	Whether the card can be interacted with (e.g., clicked, dragged).
int	`hover_distance`	10	How many pixels the card hovers above its position when interacted with (e.g., picking up a card).

Methods

Method Signature	Description
func set_faces(front_face: Texture2D, back_face: Texture2D) -> void	Sets the card’s front and back textures (`front_face_texture` and `back_face_texture`).
func return_card() -> void	Return card to stored `destination`.
func move(target_destination: Vector2, degree: float) -> void	Moves the card to `target_destination` at a given rotation angle (`degree`).
func start_hovering() -> void	Initiates a hover effect (raising the card visually).
func end_hovering(restore_card_position: bool) -> void	Ends the hover effect.
func set_holding() -> void	Marks the card as holding.
func set_releasing() -> void	Unmarks the card as holding.
func get_string() -> String	Returns `card_name` as a string representation of the card.

⬆ Back to Top

CardFactory

A Class responsible for creating cards.

Instanced by the CardManager to spawn Card nodes.

Methods

Method Signature	Description
func create_card(card_name: String, target: CardContainer) -> Card	Creates a new `Card` under the specified `CardContainer`. Requires a matching JSON file in `card_info_dir`.`card_name` must match the JSON filename.
func preload_card_data() -> void	Preloads all card data in `card_info_dir`. Any card not preloaded here will be loaded on-demand when `create_card()` is called.

⬆ Back to Top

CardContainer

A Node that holds one or more Card nodes.

Placed as a child of CardManager.
Manages how cards are organized, displayed, and interacted with (e.g., piles, hands).

Properties

Type	Name	Default	Description
bool	`enable_drop_zone`	true	Enables or disables the drop zone functionality.
Vector2	`sensor_size`	null	The size of the sensor. If not set, it follows the size of the card.
Vector2	`sensor_position`	null	The position of the sensor.
Texture	`sensor_texture` (Deprecated)	null	The texture used for the sensor.
bool	`sensor_visibility` (Deprecated)	true	Determines whether the sensor is visible or not.

Methods

Below is a reference for CardContainer methods you may override when implementing a custom card container. Override these in your subclass to tailor card behavior to your specific game mechanics:

Method Signature	Description
func add_card(card: Card, index: int = -1) -> void	Adds a `card` to the container.
func remove_card(card: Card) -> bool	Removes `card` from the container. Returns `true` if successful, `false` if the card was not found.
func has_card(card: Card) -> bool	Checks if the container currently holds the given `card`.
func clear_cards() -> void	Removes all cards from the container.
func check_card_can_be_dropped(cards: Array) -> bool	Determines if `cards` can be dropped onto this container (e.g., rules validation). Returns `true` if allowed.
func shuffle() -> void	Shuffles the order of cards in the container.
func move_cards(cards: Array, index: int = -1, with_history: bool = true) -> bool	Moves the specified `cards` into this container, optionally recording the move in history if `with_history` is `true`. It returns `true` if move successes
func undo(cards: Array) -> void	Reverses a recorded move (undo) for the specified `cards`.
func hold_card(card: Card) -> void	Holds the given `card` in this container (e.g., marking it as temporarily selected or locked).
func release_holding_cards() -> void	Releases all currently held cards in this container, returning them to normal state.
func get_string() -> String	Returns a string representation of the container’s state or contents.
func on_card_move_done(_card: Card) -> void	Called after a card has finished moving into this container.
func on_card_pressed(_card: Card) -> void	Called when a card in this container is clicked.

⬆ Back to Top

Pile

A CardContainer implementation for a stack of cards.

Useful for decks, discard piles, or any form of stacked card structure.

Properties

Type	Name	Default	Description
float	`stack_display_gap`	8	The distance (in pixels) between each card in the pile.
int	`max_stack_display`	6	The maximum number of cards to visually display at once; extra cards may be hidden or overlapped.
bool	`card_face_up`	true	Whether cards in the pile are shown face-up (`true`) or face-down (`false`).
PileDirection	`layout`	`PileDirection.UP`	The direction in which cards are stacked: `UP`, `DOWN`, `LEFT`, or `RIGHT`.
bool	`allow_card_movement`	true	Enables or disables card movement in this pile.
bool	`restrict_to_top_card`	true	If `true`, only the top card can be moved (Requires `allow_card_movement` to be `true`).
bool	`align_drop_zone_with_top_card`	true	If `true`, the pile’s drop zone follows the position of the top card (Requires `allow_card_movement` to be `true`).

Methods

Method Signature	Description
func get_top_cards(n: int) -> Array	Returns an array of up to `n` cards from the top of the pile.

⬆ Back to Top

Hand

A CardContainer implementation for a player’s hand of cards.

A Curve resource can be used to control how cards are distributed along an arc. This allows you to create a more natural “fanned” or curved hand appearance rather than a flat line.

Properties

Type	Name	Default	Description
int	`max_hand_size`	10	The maximum number of cards this hand can hold.
float	`max_hand_spread`	700	The maximum horizontal spread (in pixels) used when laying out cards in the hand.
bool	`card_face_up`	true	Whether the hand displays cards face up (`true`) or face down (`false`).
int	`card_hover_distance`	30	The distance (in pixels) that a card hovers above the hand when interacted with.
Curve	`hand_rotation_curve`	null	Used to adjust the rotation of each card in the hand; works best as a 2-point linear curve (left to right). (Required)
Curve	`hand_vertical_curve`	null	Used to adjust the vertical positioning of each card in the hand; works best as a 3-point ease in/out curve (0→X→0). (Required)
bool	`align_drop_zone_size_with_current_hand_size`	true	Determines whether the drop zone size follows the hand size. (requires enable drop zone true)
bool	`swap_only_on_reorder`	false	If true, only swap the positions of two cards when reordering (a b), otherwise shift the range (default behavior).

Methods

Method Signature	Description
func get_random_cards(n: int) -> Array	Returns an array of up to `n` randomly chosen cards from the hand.
swap_card(card: Card, index: int)	Swap a card in the hand with the card on index.

⬆ Back to Top

Creating Card Info JSON Files

Create a JSON file In the card_info_dir directory, create a JSON file named after your card, e.g., card_name.json.
Required Fields
- name: The card’s identifier in the game.
- front_image: The filename (relative to card_asset_dir) of the texture used for the card’s front face.
Additional Fields
- You can add any custom properties (e.g., suit, value, or other game-specific data).
- To utilize these properties, consider extending the Card class and handling the extra data accordingly. Refer to the PlayingCard node example in the freecell/card directory.

Example

Filename: club_2.json

{
    "name": "club_2",
    "front_image": "cardClubs2.png",
    "suit": "club",
    "value": "2"
}

Sample Projects

Example1

Example1 Screenshot

A simple demonstration of the Card Framework.

Run the scene: res://example1/example1.tscn
Uses Pile and Hand nodes to create basic deck, hand, and discard piles.
Each pile showcases different properties, allowing you to explore how these settings affect card behavior.

Freecell

Freecell Screenshot

A full FreeCell Game built on top of the Card Framework.

Run the scene: res://freecell/scenes/menu/menu.tscn
PlayingCard: An extended Card class for standard playing cards.
Foundation, Tableau, and Freecell: Custom CardContainer subclasses implementing FreeCell’s unique rules.
- Notably, Tableau supports moving multiple cards at once.
Main implementation is found under scenes/main_game/freecell_game.
Also includes seed-based game generation, statistics, and additional details for a production-ready solitaire-like game.

Contributing

Contributions are welcome! Please follow these steps to contribute:

Fork the repository.
Create a new branch for your feature or bugfix.
Commit your changes with clear and descriptive messages.
Open a pull request detailing your changes and the problem they solve.

Please ensure your code adheres to the existing style and includes relevant documentation.

License / Credits

Kenney.nl Card Assets

Path: res://freecell/assets/images/cards/, res://example1/assets/images/cards/
Source: Kenney - Boardgame Pack
License: CC0 (Creative Commons Zero)

ChatGPT-Generated Spot Images

Path: res://freecell/assets/images/spots/
Description: These spot images were generated with assistance from ChatGPT.
Usage: They can be used freely within this project.

Thanks To

Changelog

1.0.0 (2025-01-03)

initial release

1.1.0 (2025-06-02)

Improved drop zone handling logic.
Enhanced Hand functionality: you can now reorder cards in the hand by dropping.
Refactored CardFactory: separated JsonCardFactory and made CardFactory generic for custom implementations.

1.1.1 (2025-06-06)

Fixed a bug that card_size doesn't work.

1.1.2 (2025-06-20)

Fixed a bug where cards in a full Hand could not be reordered.
Refactored: Drag and Drop functionality previously in Card has been separated into DraggableObject, allowing not only Card but any object to inherit and use drag-and-drop features.
Added accept_type to DropZone, making it usable beyond just CardContainer for broader compatibility.
The enable_drop_zone property in CardContainer now controls not only the creation of the drop zone, but also allows you to enable or disable the drop zone dynamically at runtime.

1.1.3 (2025-07-10)

Added a reference guide that matches the size of the Sensor's Drop Zone for debugging purposes. You can enable or disable this using the debug_mode flag in CardManager.
Deprecated: sensor_visibility, sensor_texture in CardContainer.
Added the swap_only_on_reorder flag to Hand.
- When enabled, dragging a card within the Hand will swap its position with the card at the drop location, instead of shifting all cards as before.
- The default behavior remains shifting; use this option if you prefer swap-style reordering.
Fixed: moves that occur within the same CardContainer are no longer recorded in the history.
Fixed: Resolved an issue where mouse control could become inconsistent when adding a card to a CardContainer at a specific index.

Card Framework

Card Framework

Features

Table of Contents

Installation

Getting Started

Classes

CardManager

Properties

Methods

Card

Properties

Methods

CardFactory

Methods

CardContainer

Properties

Methods

Pile

Properties

Methods

Hand

Properties

Methods

Creating Card Info JSON Files

Example

Sample Projects

Example1

Freecell

Contributing

License / Credits

Kenney.nl Card Assets

ChatGPT-Generated Spot Images

Thanks To

Changelog

1.0.0 (2025-01-03)

1.1.0 (2025-06-02)

1.1.1 (2025-06-06)

1.1.2 (2025-06-20)

1.1.3 (2025-07-10)
