AnimSheet - SpriteSheet to Animation Player screenshot 1
L

Publisher

lighar

AnimSheet - SpriteSheet to Animation Player

2D
SpriteSheet AnimationPlayer Sprite2D FPS AutoDetect DragDrop Visual Preview

Quickly generate ready-to-use AnimationPlayer directly from your sprite sheets within the Godot editor. Features - Supports Common Formats – Load PNG, JPG, WEBP, and more! - Auto-Detect – Let AnimSheet find animations automatically! Works with transparent backgrounds and strips. - Manual Drag & Drop – Draw animation frames directly on the sprite sheet preview! - Custom FPS Settings – Control playback speed per animation. - One-Click Node Generation – Instantly create Sprite2D and AnimationPla...

Download Latest (1.0)
Source Repository

🎬 AnimSheet - Bring Your Spritesheets to Life!

✨ Turn your sprite sheets into fully-animated sprites with just a few clicks! ✨

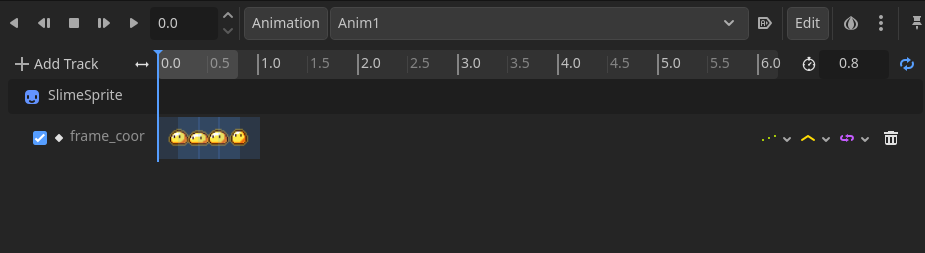

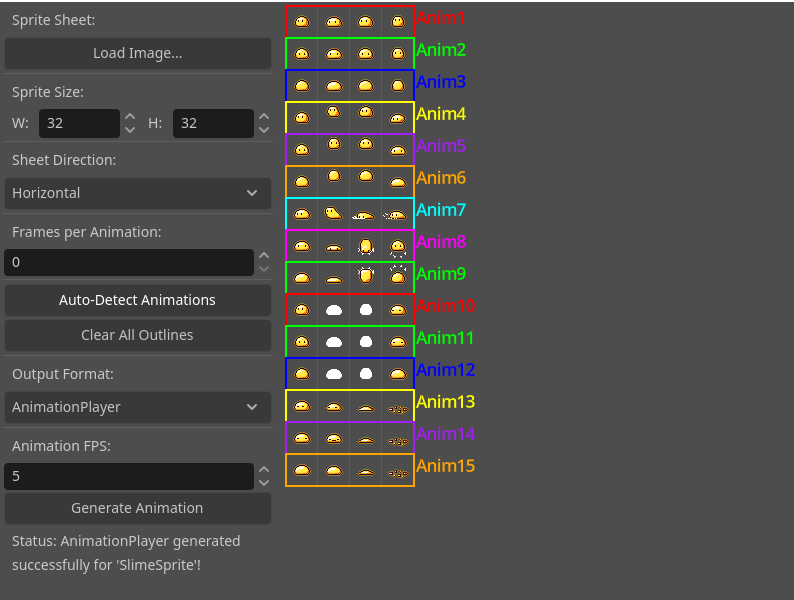

Plugin Screenshot Plugin Screenshot 2

SpriteSheet Source: Snoblin's Pixel RPG Free NPC

Say goodbye to the hassle of manually setting up Animation Player ! AnimSheet lets you effortlessly create Sprite2D and AnimationPlayer nodes directly from your sprite sheets. Just load, define, and generate animation – it's that easy! 🚀

🎯 Features

Supports Common Formats – Load PNG, JPG, WEBP, and more!
Visual Feedback – See a grid overlay on your sprite sheet for easy alignment.
Fast Animation Setup:

  • 🔍 Auto-Detect – Let AnimSheet find animations automatically! Works with transparent backgrounds and strips.
  • 🖱️ Manual Drag & Drop – Draw animation frames directly on the sprite sheet preview! Custom FPS Settings – Control playback speed per animation.
    One-Click Node Generation – Instantly create Sprite2D and AnimationPlayer nodes with correctly set animation tracks.

🚀 Installation

📦 From Asset Library (Recommended)

  1. Open Godot Editor and go to the AssetLib tab.
  2. Search for AnimSheet.
  3. Download & install the plugin.
  4. Enable it in Project -> Project Settings -> Plugins.

🔧 Manual Installation

  1. Download the addons/anim_sheet folder from this repository.
  2. Place the addons folder in your Godot project directory.
  3. Enable the plugin in Project -> Project Settings -> Plugins.

🛠️ How to Use

1. Open the Plugin:
Go to Project -> Tools -> Sprite Sheet Animator in the Godot Editor.

2. Load Your Sprite Sheet:
Click the Load Texture button and select your sprite sheet image.

3. Set Frame Size:
Adjust Sprite Width and Sprite Height to match the size of a single frame.

4. Define Animations:

A. Auto-Detect Mode

  • Choose the animation layout (Horizontal or Vertical).
  • (Optional) Set "Frames Per Anim" to split longer strips into multiple animations.
  • Click Auto Detect Animations – magic happens! ✨

B. Manual Mode

  • Click & drag to draw rectangles around animation frames.

5. Fine-Tune Your Animations (Optional):

  • Rename: Click an animation’s name label (e.g., "Anim1") to rename it.
  • Delete: Right-click an animation's outline to remove it.

6. Generate Nodes:

  • Open a scene in Godot.
  • Click Generate Nodes and watch your sprite come to life! 🎉

📜 License

This project is licensed under MIT – use it freely in your games! 🚀
