Character generator importer tool

Speed up the process of creating animations from the character generator 2.0 · Report Bug · Request Features

📦 Installation

Download Latest Release
Unpack the addons/ninetailsrabbit.character-generator-importer-tool folder into your /addons folder within the Godot project
Enable this addon within the Godot settings: Project > Project Settings > Plugins

To better understand what branch to choose from for which Godot version, please refer to this table:

Godot Version	Character generator importer tool Branch	Character generator importer toolVersion
	`4.3`	`1.x`
	`main`	`1.x`

Features

One tool node that only generates the animations and then can be deleted from the scene tree
Create animated sprite and optionally the animation player for each spritesheet
Generate all the animation frames from body parts to be able to customize the character inside Godot with resources
Selectable Adult animations
Selectable Kid animations
Auto detect sprite size or set the values manually if you know the spritesheet size
Support for importing individual spritesheets or all spritesheets contained within a folder

Getting started

This is an unofficial tool that can be used as a plugin in Godot to speed up the process of creating animations for the character generator included in this asset https://limezu.itch.io/moderninteriors.

There is no examples of spritesheet in the repository as it is a paid tool but the process is very simple I promise

Add the node to the scene

importer_search

Choose the spritesheets to import

importer_properties

Generate animations: Tool button to start the generation of AnimatedSprite2D from the spritesheets
Clear animations: Clear the animations generated in the scene tree

Create animation player: When active creates an AnimationPlayer node for each AnimatedSprite2D, needed if you want to use them later in an AnimationTree.
Character spritesheet: Select an individual character spritesheet .png to import from your project
Character spritesheet folder: Select a folder to import all the character spritesheets inside

Input folder parts: The folder where all the individual spritesheet parts to import are, animation frames will be generated as resources.
Output folder parts: The folder where to generate the output animation frames created from the spritesheets found at input_folder_parts

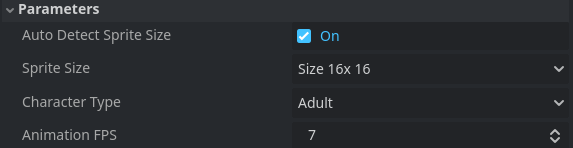

Select the parameters to import the spritesheets

importer_search

Auto detect sprite size: The tool auto detect the sprite size and character type (Adult, Kid) to create the frames correctly
Sprite Size (not used if auto is active) The character generator tool gives you an option to save the spritesheets into 16x16, 32x32 or 48x48. Set that value here if you already know the size beforehand
Character type (not used if auto is active) The type of spritesheet to import Adult or Kid
Animation FPS: The animation fps value for the generated AnimatedSprite2D

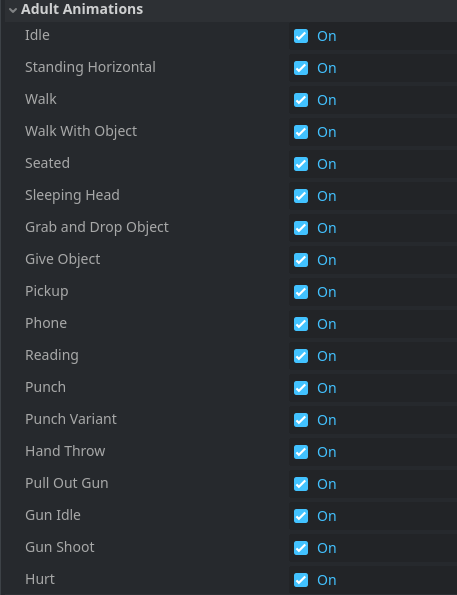

Select the adult animations you want to include

adult_animations

Select the kid animations you want to include

kid_animations

Click the "Generate Animations" button

Individual spritesheet

individual_spritesheet

individual_spritesheet_frames

Spritesheet folder

spritesheet_folder_generation

How to import spritesheet parts

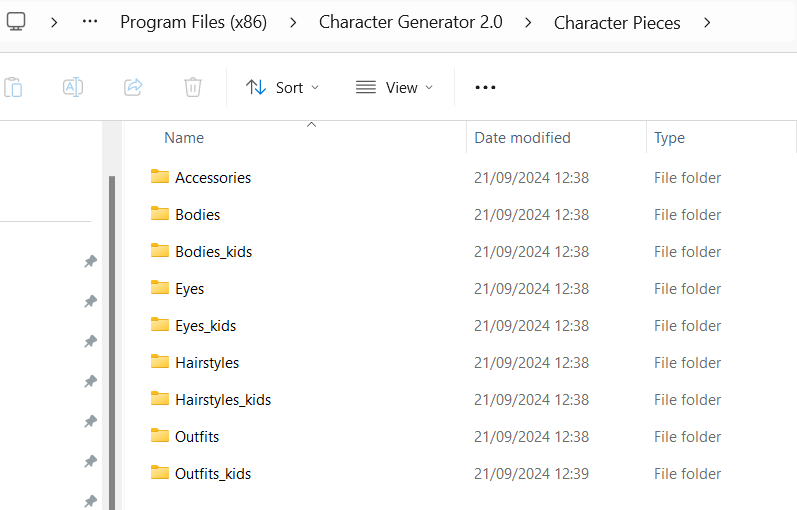

The character generator tool saves all the spritesheet as separated body parts on the path:

C:\Program Files (x86)\Character Generator 2.0\Character Pieces

generator_parts_folder

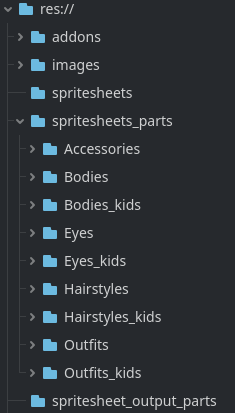

Set in the CharacterGeneratorImporterTool the property input_folder_parts with a folder that exists in your Godot project and then copy all the character pieces folders (or only the parts you want) into it.

input_folder_parts_set

Set in the CharacterGeneratorImporterTool the property output_folder_parts with a folder that exists in your Godot project to generate the parts as animation frame resources

importer_path_folders
