Radial Progress Indicator

Radial progress indicator is a plugin for the Godot game engine. It is a Control that displays a radial progress indicator with several options.

Tested in Godot 4.0.4-stable, Godot 4.1.3-stable and Godot 4.2.1-stable.

Properties

• max_value : maximum value

• progress : progress value

• radius : radius of indicator

• thickness : thickness of indicator

• bg_color : background color

• bar_color : indicator color

• ring : bool

• nb_points : int


Set the progress property to a positive value to move the indicator clockwise, and to a negative value to move the indicator counterclockwise.

Instead of setting the progress property, the animate method can be called to move the progress indicator from initial_value to max_value over duration seconds.

If ring is true, only the outer ring will be rendered.

Use nb_points to be able to change drawing accuracy.

Methods

• animate(duration: float, clockwise: bool = true, initial_value: float = 0.0)


Installation

To use the plugin in a project, copy the folder addons/radial_progress/ into the project folder. If installing from the Godot Editor AssetLib tab, only that folder needs to be installed.

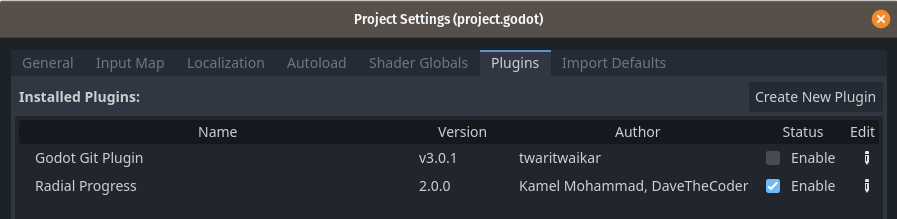

Then enable the plugin in Project / Project Settings... / Plugins.

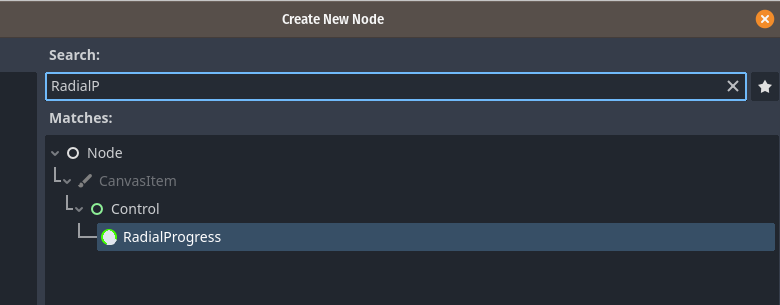

Now the RadialProgress is available when creating a new node.

Demo

The repository includes a demo of the plugin. To use the demo, create a new folder containing the addons/radial_progress/ subfolder and the contents of the demo/ folder. Then use the Godot Project Manager to import a Godot project using the contents of the new folder.
