Godot Very Simple Twitch

Easily connect your Godot games to Twitch chat. Log in with a single line of code to start reading messages right away. Features two docks for setting up the Twitch developer console and reading chat directly in the editor. Supports OIDC for seamless Twitch API interactions to write messages, timeout users, grant VIP status, and more.

Table of contents

• How to install
• Quick setup
• How to use
  • Login
    • Simple anonymous connection
    • Get Token and login to channel
  • Receive chat messages
  • Send chat messages
  • Logout
• Editor Docks
  • Very Simple Twitch
  • VstChatDock
    • Usage
    • Features
    • Modifications
• FAQ and Troubleshooting
  • Change Settings
• License

How to install

Godot Very Simple Twitch requires Godot 4.2 or higher. You can check the Godot version you have installed in the bottom dock of your editor.

• Clone the project or download the latest release.
• If you cloned the project, extract the addons folder.
• Move the addons folder to your game folder.

To verify the installation is correct:

• The folder path res://addons/very-simple-twitch exists.
• Go to Project > Project Settings.
• Click on the Plugins tab.
• Enable Very Simple Twitch.
• Restart Godot.

Quick Setup

To use Very Simple Twitch, you will need to set up a new App in the Twitch developer console and perform the following steps:

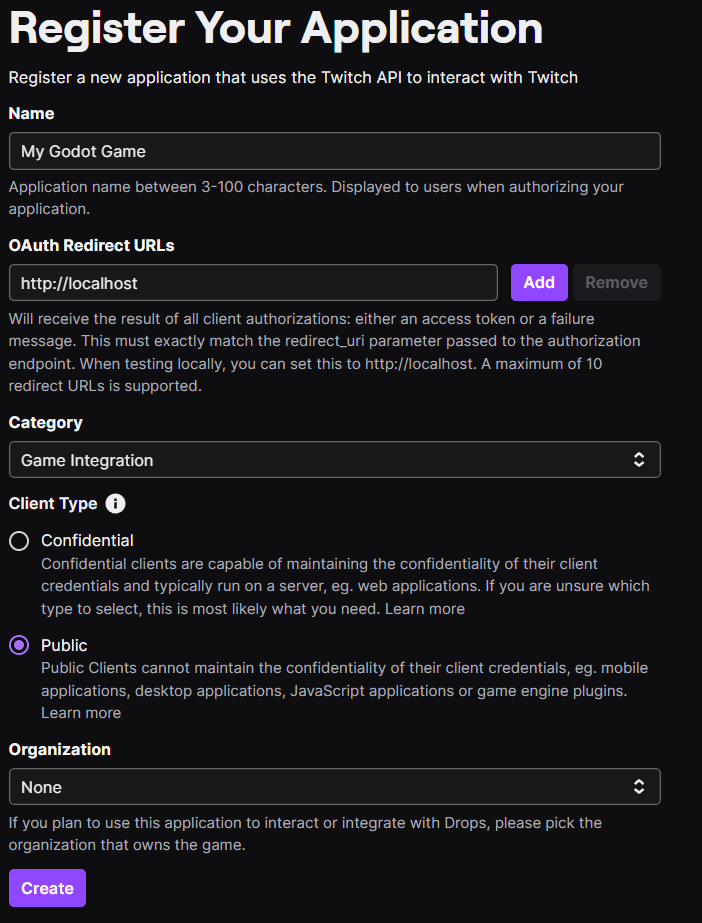

1. Go to https://dev.twitch.tv/console/apps and authorize Twitch Developer to access your account.

2. Click on the "Register Your Application" button.

3. Name your application, set the Category to Game Integration, and the OAuth Redirect URL to http://localhost for now.

4. Set your Client Type to Public.

5. Click on "Create".

6. Open the Very Simple Twitch dock at the bottom of your Godot editor.

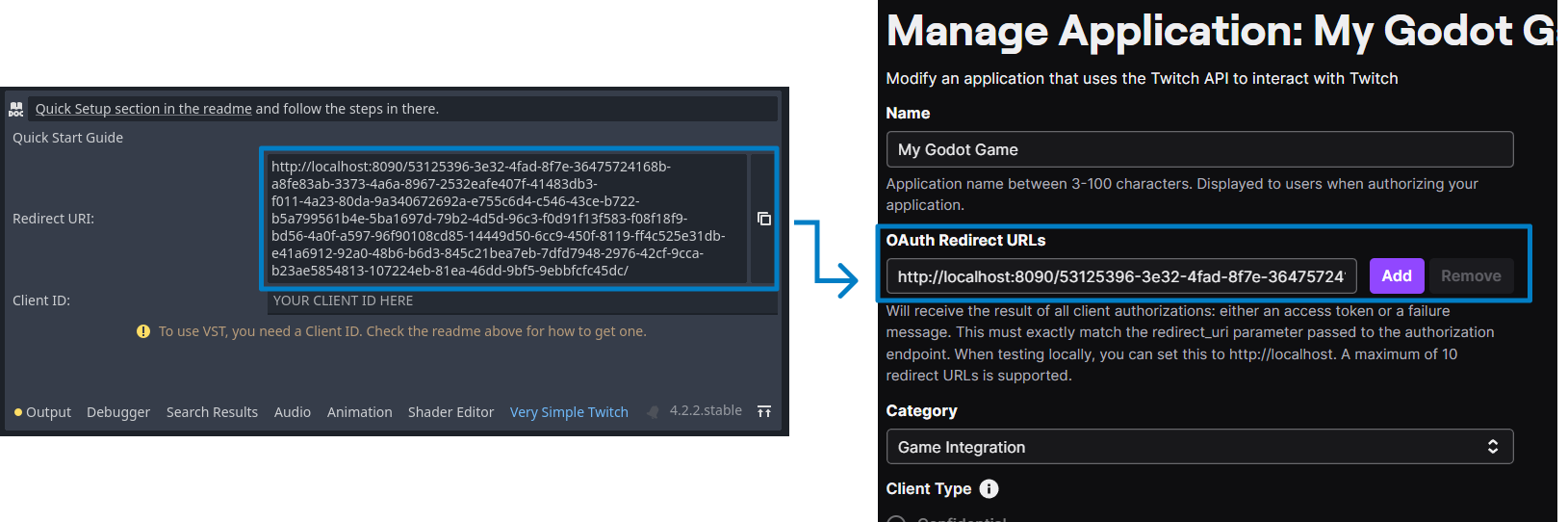

7. Copy the Redirect URL addresses from the Twitch Quick Start tab to your Twitch Developer App.

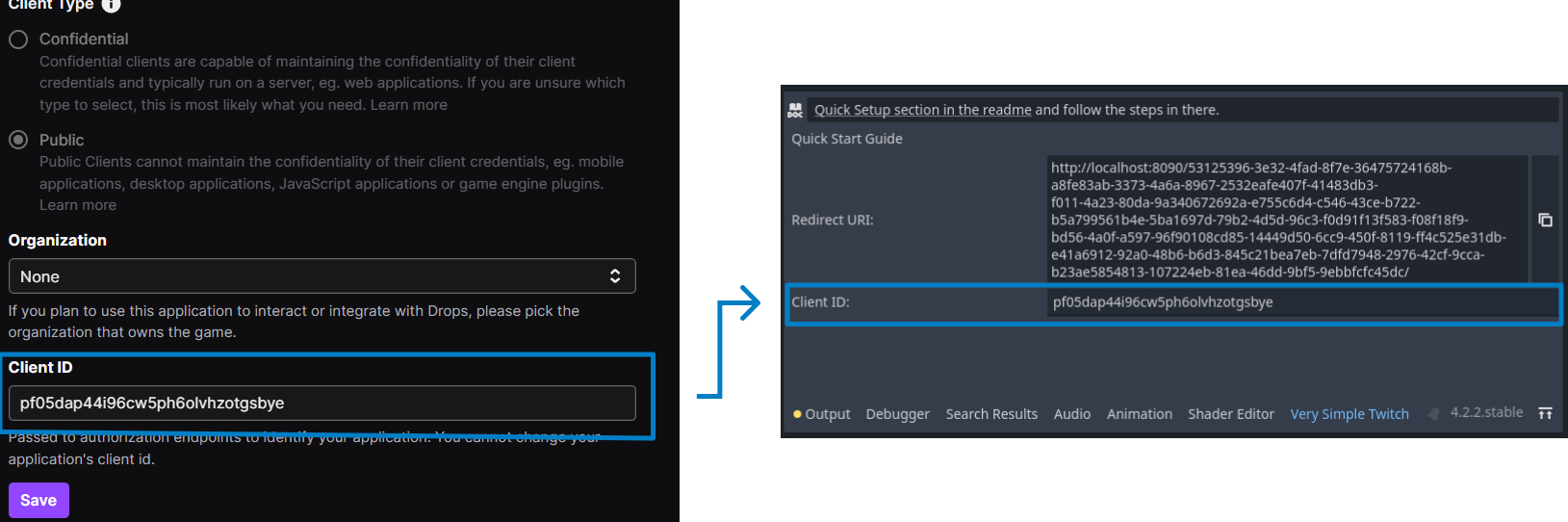

8. Copy the generated "Client ID" from your Twitch Developer App and add it either to Very Simple Twitch dock at the bottom or to the project settings.

That's all! Everything is ready to use!

How to Use

How to Login

Simple anonymous connection

This is the easiest way to use the plugin. You can use VerySimpleTwitch.login_chat_anon("channel_name") to connect to the channel without needing a token or any settings customization.

var channel_name: String = "channel_name"

VerySimpleTwitch.login_chat_anon(channel_name)

Get Token and login to channel

You can use VerySimpleTwitch.get_token_and_login_chat() to retrieve the token and automatically log in to the Twitch chat.

VerySimpleTwitch.get_token_and_login_chat()

Note: You will need to set up the CLIENT_ID in the Settings tab and configure the Twitch app accordingly.

How to receive chat messages

To receive Twitch chat messages, connect the chat_message_received signal from VerySimpleTwitch. The signal contains all the information available from the chatter, including display_name, badges, tags, and colors.

func _ready():
	VerySimpleTwitch.chat_message_received.connect(print_chatter_message)

func print_chatter_message(chatter: Chatter):
	print("Message received from %s: %s" % [chatter.tags.display_name, chatter.message])

How to send chat messages

To send chat messages, you can use the VerySimpleTwitch.send_chat_message("Hello world") static method. Sending chat messages is only available when you use the OAuth connection method with a Token that has writing permissions.

How to Logout

To log out from an already connected Twitch Channel, you can use the method VerySimpleTwitch.end_chat_client() to stop the connection. This method is useful if the user misspelled their channel name with Anonymous connection or wants to change accounts / stop the integration.

Editor Docks

Godot Very Simple Twitch provides two editor docks to streamline your Twitch integration:

• Very Simple Twitch: Located at the bottom of the editor, this dock is your primary hub for initial setup and configuration.
• VSTChatDock: Found on the right side of the editor, this dock allows you to connect to a Twitch channel and monitor chat messages directly within Godot.

VST Chat Dock

As mentioned above, VST Chat Dock is a connection to the Twitch channel chat where all messages are displayed in the editor. This is useful for testing your project as it allows you to easily visualize what messages you are receiving and when.

If you are a Godot streamer, you can read your chat in the same window you are coding in.

Usage

Just add and activate the plugin as explained in the installation instructions. Install the plugin as usual, and you'll see a new tab in the right dock named "VstChatDock". Type in the name of a channel and click connect. You will see the messages as soon as the plugin connects.

Features

• The chat dock works ONLY in anonymous mode, so you don't need any authorization token, just the channel name.
• There is a limit for saved messages. The default is 50 messages, but it can be changed in the editor settings (TBI).
• You can delete all chat messages.

FAQ and Troubleshooting

Change Settings

You can change the Settings in Project > Project Settings > General > Very Simple Twitch. Note that switching on the Advanced Settings toggle will allow you to customize your client even further. Advanced configurations are not supposed to be changed without further knowledge of how Twitch works.

License

This project is released under the MIT License by RothioTome (2024).
