Full Screen Effects Addon for Godot 4

This Full Screen Effects addon is created specifically for 3D projects. It includes a variety of full-screen effects, supports multiple instances for each effect, and features a smooth fade system for seamless transitions. An example project is included to help you get up and running quickly.

Please note: this addon is provided as-is. While there won't be official support, I will be updating and fixing it as I continue work on my own project.

Features

• Full Screen Effects:
  • Radial Blur
  • Screen Blur
  • FOV Shake
  • FOV Fade
  • Screen Shake
  • Fade from/to Color
  • Motion Blur
• Multiple Instances:
  Multiple instances of each effect can be added and controlled individually.
• Effect Management:
  Built-in system to handle the fade-in, fade-out, and duration of each effect.

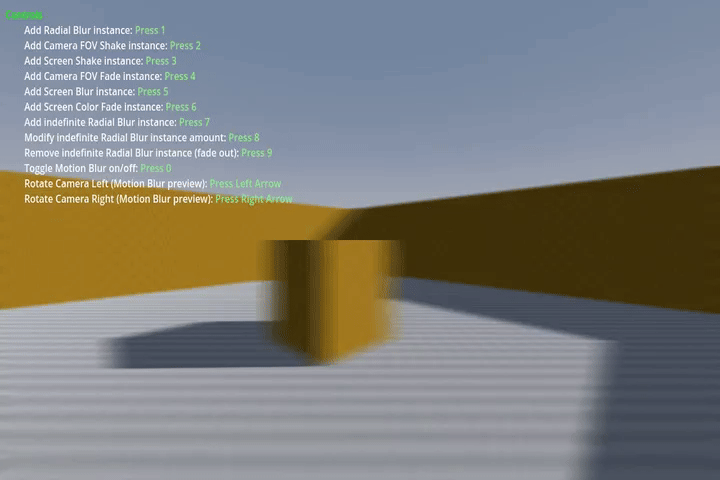

• Example Project:
  Includes a sample project demonstrating the usage of the addon.

Installation

The installation process follows the standard procedure for any Godot addon:

1. Download the latest version of the addon.
2. Extract the addon and copy the addons/ScreenEffects folder into the root directory of your Godot project.
3. Navigate to Project > Project Settings > Plugins. Locate the "Full Screen Effects" plugin and set it to Active.
   The addon should now be available for use in your project.

Usage

The addon provides an easy-to-use API to add and manage full-screen effects. Here's an example using the Radial Blur effect.

Example: Adding a Radial Blur Effect

To add a radial blur effect instance, use the following function call:

# Adds a single instance of Radial Blur effect with an amount of 1.25,
# fade-in of 1.0 second, duration of 1.0 second,
# and fade-out of 3.0 seconds.

ScreenEffects.AddRadialBlur(1.25, 1.0, 1.0, 3.0)

Manipulating Effect Instances

You can store the ID of an effect instance to manipulate it later. If the duration is set to -1, the effect will continue indefinitely until manually stopped.

var mlRadialBlurInstanceID: int = -1

###################################################
# Add a Radial Blur effect with no fade-out (runs indefinitely).
if mlRadialBlurInstanceID == -1:
    mlRadialBlurInstanceID = ScreenEffects.AddRadialBlur(1.25, 1.0, -1.0, 3.0)

####################################################
# Update the amount of the Radial Blur effect to 0.5.
if mlRadialBlurInstanceID != -1:
    ScreenEffects.SetRadialBlurAmount(mlRadialBlurInstanceID, 0.5)

#####################################################
# Stop the Radial Blur effect and reset the ID.
if mlRadialBlurInstanceID != -1:
    ScreenEffects.StopRadialBlur(mlRadialBlurInstanceID)
    mlRadialBlurInstanceID = -1

API Reference

The EffectsHandler class provides an interface for managing screen effects in Godot 4.x 3D projects. Below are the public methods for adding, configuring, and stopping effects like FOV fades, screen shakes, blurs, and color fades, as well as accessing viewport-related nodes.

Methods

GetPostProcessEffectsChainControl() -> Control

Returns the Control node managing the post-process effects chain.

GetPostProcessViewportContainer() -> SubViewportContainer

Returns the SubViewportContainer node used for post-processing.
Returns: null if the container is invalid.

GetPostProcessViewport() -> SubViewport

Returns the SubViewport node within the post-process container.
Returns: null if the container or viewport is invalid.

AddFovFade(afFovMultiplier: float = 1.0, afFadeIn: float = 0.1, afDuration: float = 0.1, afFadeOut: float = 0.8) -> int

Adds a field-of-view (FOV) fade effect.
Parameters:

• afFovMultiplier: Scales the camera’s FOV (default: 1.0).
• afFadeIn: Duration (seconds) to fade in (default: 0.1).
• afDuration: Duration (seconds) at full strength (default: 0.1).
• afFadeOut: Duration (seconds) to fade out (default: 0.8).
  Returns: Unique ID of the effect instance, or -1 if creation fails.

GetFovFadeInstanceById(alID: int) -> cFovFade

Retrieves a FOV fade instance by its ID.
Parameters:

• alID: The ID of the effect instance.
  Returns: The cFovFade instance, or null if not found.

StopFovFade(alID: int) -> void

Stops a FOV fade effect by its ID.
Parameters:

• alID: The ID of the effect instance.

SetFovFadeMultiplier(alID: int, afX: float) -> void

Updates the FOV multiplier for a FOV fade effect.
Parameters:

• alID: The ID of the effect instance.
• afX: New FOV multiplier value.

AddScreenShake(afForce: float = 0.1, afRate: float = 50.0, afFadeIn: float = 0.1, afDuration: float = 0.1, afFadeOut: float = 0.8) -> int

Adds a screen shake effect.
Parameters:

• afForce: Shake amplitude (default: 0.1).
• afRate: Shake frequency (default: 50.0).
• afFadeIn: Duration (seconds) to fade in (default: 0.1).
• afDuration: Duration (seconds) at full strength (default: 0.1).
• afFadeOut: Duration (seconds) to fade out (default: 0.8).
  Returns: Unique ID of the effect instance, or -1 if creation fails.

GetScreenShakeInstanceById(alID: int) -> cScreenShake

Retrieves a screen shake instance by its ID.
Parameters:

• alID: The ID of the effect instance.
  Returns: The cScreenShake instance, or null if not found.

StopScreenShake(alID: int) -> void

Stops a screen shake effect by its ID.
Parameters:

• alID: The ID of the effect instance.

SetScreenShakeForce(alID: int, afX: float) -> void

Updates the force (amplitude) of a screen shake effect.
Parameters:

• alID: The ID of the effect instance.
• afX: New force value.

AddFovShake(afForce: float = 0.1, afRate: float = 50.0, afFadeIn: float = 0.1, afDuration: float = 0.1, afFadeOut: float = 0.8) -> int

Adds a FOV shake effect.
Parameters:

• afForce: Shake amplitude (default: 0.1).
• afRate: Shake frequency (default: 50.0).
• afFadeIn: Duration (seconds) to fade in (default: 0.1).
• afDuration: Duration (seconds) at full strength (default: 0.1).
• afFadeOut: Duration (seconds) to fade out (default: 0.8).
  Returns: Unique ID of the effect instance, or -1 if creation fails.

GetFovShakeInstanceById(alID: int) -> cFovShake

Retrieves a FOV shake instance by its ID.
Parameters:

• alID: The ID of the effect instance.
  Returns: The cFovShake instance, or null if not found.

StopFovShake(alID: int) -> void

Stops a FOV shake effect by its ID.
Parameters:

• alID: The ID of the effect instance.

SetFovShakeForce(alID: int, afX: float) -> void

Updates the force (amplitude) of a FOV shake effect.
Parameters:

• alID: The ID of the effect instance.
• afX: New force value.

AddRadialBlur(afAmount: float = 1.0, afFadeIn: float = 0.1, afDuration: float = 0.1, afFadeOut: float = 0.8, avFocusPosition: Vector2 = Vector2(0.5, 0.5)) -> int

Adds a radial blur effect.
Parameters:

• afAmount: Blur intensity (default: 1.0).
• afFadeIn: Duration (seconds) to fade in (default: 0.1).
• afDuration: Duration (seconds) at full strength (default: 0.1).
• afFadeOut: Duration (seconds) to fade out (default: 0.8).
• avFocusPosition: Center of the blur (default: Vector2(0.5, 0.5)).
  Returns: Unique ID of the effect instance, or -1 if creation fails.

GetRadialBlurInstanceById(alID: int) -> cRadialBlur

Retrieves a radial blur instance by its ID.
Parameters:

• alID: The ID of the effect instance.
  Returns: The cRadialBlur instance, or null if not found.

SetRadialBlurFocusPosition(alID: int, avPosition: Vector2) -> void

Updates the focus position of a radial blur effect.
Parameters:

• alID: The ID of the effect instance.
• avPosition: New focus position (Vector2).
  Note: Currently sets the property instantly.

StopRadialBlur(alID: int) -> void

Stops a radial blur effect by its ID.
Parameters:

• alID: The ID of the effect instance.

AddScreenBlur(afAmount: float = 1.0, afFadeIn: float = 0.1, afDuration: float = 0.1, afFadeOut: float = 0.8) -> int

Adds a uniform screen blur effect.
Parameters:

• afAmount: Blur intensity (default: 1.0).
• afFadeIn: Duration (seconds) to fade in (default: 0.1).
• afDuration: Duration (seconds) at full strength (default: 0.1).
• afFadeOut: Duration (seconds) to fade out (default: 0.8).
  Returns: Unique ID of the effect instance, or -1 if creation fails.

GetScreenBlurInstanceById(alID: int) -> cScreenBlur

Retrieves a screen blur instance by its ID.
Parameters:

• alID: The ID of the effect instance.
  Returns: The cScreenBlur instance, or null if not found.

SetScreenBlurAmount(alID: int, afAmount: float) -> void

Updates the blur intensity of a screen blur effect.
Parameters:

• alID: The ID of the effect instance.
• afAmount: New blur intensity.

StopScreenBlur(alID: int) -> void

Stops a screen blur effect by its ID.
Parameters:

• alID: The ID of the effect instance.

SetMotionBlurActive(abX: bool) -> void

Enables or disables motion blur globally.
Parameters:

• abX: true to enable, false to disable.

GetMotionBlurActive() -> bool

Checks if motion blur is active.
Returns: true if enabled, false otherwise.

AddScreenFade(afFadeDuration: float = 1.0, aStartColor: Color = Color(0,0,0,1), aEndColor: Color = Color(0,0,0,0)) -> int

Adds a screen fade effect transitioning between two colors.
Parameters:

• afFadeDuration: Total duration (seconds) of the fade (default: 1.0).
• aStartColor: Starting color (default: opaque black).
• aEndColor: Ending color (default: transparent).
  Returns: Unique ID of the effect instance, or -1 if creation fails.

GetScreenFadeInstanceById(alID: int) -> cScreenFade

Retrieves a screen fade instance by its ID.
Parameters:

• alID: The ID of the effect instance.
  Returns: The cScreenFade instance, or null if not found.

SetCamera(aCamera: Camera3D) -> void

Sets the camera used for rendering effects.
Parameters:

• aCamera: The Camera3D node to use.

Roadmap

More effect types will be added in future updates.

Example Project

An example project demonstrating the usage of this addon is included in the repository. Check the example_project/ folder for a working setup that shows how to integrate and manage the effects in your own project.

License

This addon is licensed under the MIT License. See the LICENSE file for more information.
