OBJ Origin/Pivot Tool

A Godot 4 plugin that lets you correct the origin/pivot point of a .obj file inside of the Godot Editor.

---

Features

• Adjust .obj File Origin Point Easily: One click correction of the origin point of a .obj file to place the origin either center mass or center bottom of the mesh

---

Installation

1. Download or Clone this repository:

   https://github.com/RedPlanetGames/Godot-OBJ-Origin-Tool.git

2. Copy the addons/obj_origin_tool folder into your Godot project directory.
3. Open your project in Godot.
4. Go to Project > Project Settings > Plugins.
5. Enable the OBJ Origin/Pivot Tool plugin.

---

Usage

1. Select an OBJ Model: Choose the OBJ model whose origin you want to adjust
2. Use the Dock or Project -> Tools menu: The tool will appear as a dock tab in the same panel as the Scene and Import tabs.  It also can be found in Project -> Tools
3. Apply: Select which origin point you want for your model

Visual Example

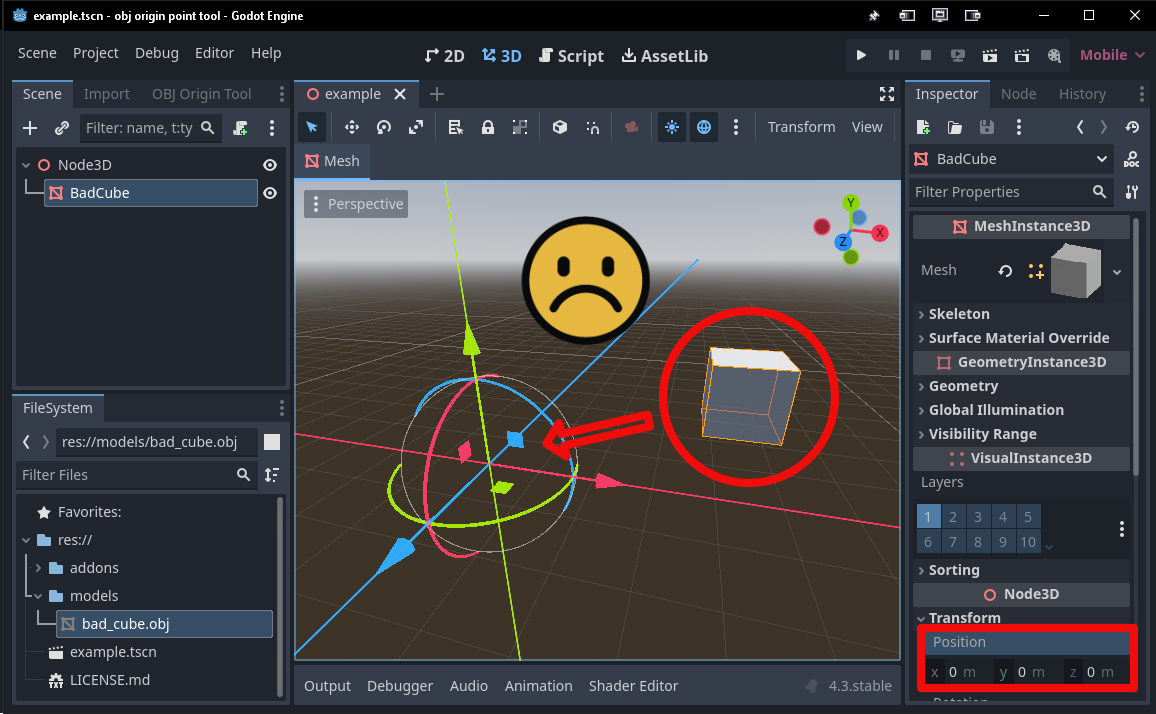

1. Problem: Bad Origin

2. Solution: Adjust the Origin

3. Result: Correct Origin

---

License

This project is licensed under the MIT License. See LICENSE.md for more details.

---

Contact

For updates and inquiries, connect with me on Bluesky:

Acknowledgments

• Godot Engine for being awesome.
