AnimSheet - SpriteSheet to Animation Player

by Lighar

1

🎬 AnimSheet - Bring Your Spritesheets to Life!

✨ Turn your sprite sheets into fully-animated sprites with just a few clicks! ✨

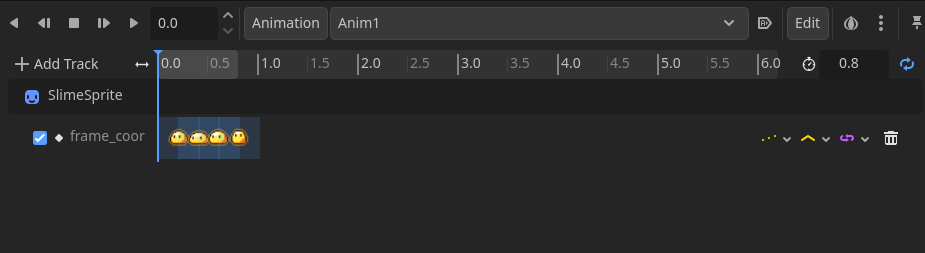

Plugin Screenshot

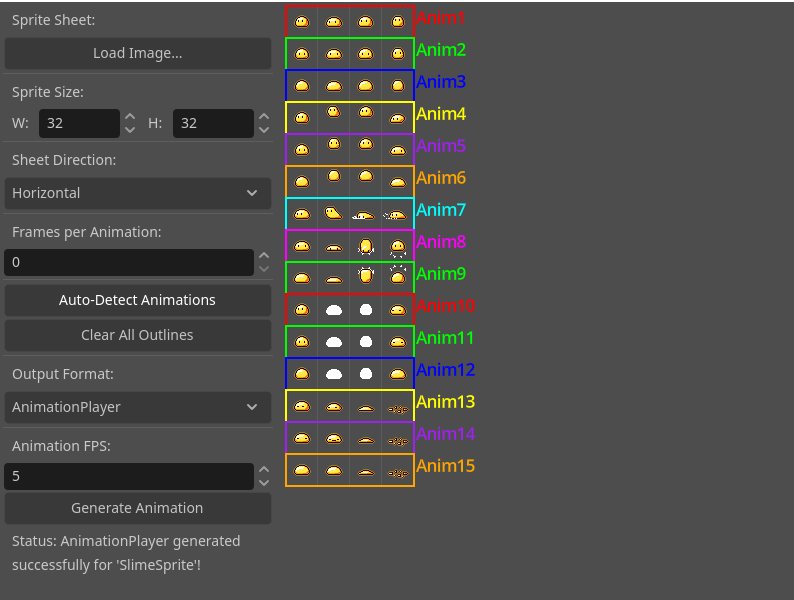

Plugin Screenshot 2

SpriteSheet Source: Snoblin's Pixel RPG Free NPC

Say goodbye to the hassle of manually setting up Animation Player ! AnimSheet lets you effortlessly create Sprite2D and AnimationPlayer nodes directly from your sprite sheets. Just load, define, and generate animation – it's that easy! πŸš€


🎯 Features

Supports Common Formats – Load PNG, JPG, WEBP, and more!
Visual Feedback – See a grid overlay on your sprite sheet for easy alignment.
Fast Animation Setup:

  • πŸ” Auto-Detect – Let AnimSheet find animations automatically! Works with transparent backgrounds and strips.
  • πŸ–±οΈ Manual Drag & Drop – Draw animation frames directly on the sprite sheet preview!
    Custom FPS Settings – Control playback speed per animation.
    One-Click Node Generation – Instantly create Sprite2D and AnimationPlayer nodes with correctly set animation tracks.

πŸš€ Installation

πŸ“¦ From Asset Library (Recommended)

  1. Open Godot Editor and go to the AssetLib tab.
  2. Search for AnimSheet.
  3. Download & install the plugin.
  4. Enable it in Project -> Project Settings -> Plugins.

πŸ”§ Manual Installation

  1. Download the addons/anim_sheet folder from this repository.
  2. Place the addons folder in your Godot project directory.
  3. Enable the plugin in Project -> Project Settings -> Plugins.

πŸ› οΈ How to Use

1. Open the Plugin:
Go to Project -> Tools -> Sprite Sheet Animator in the Godot Editor.

2. Load Your Sprite Sheet:
Click the Load Texture button and select your sprite sheet image.

3. Set Frame Size:
Adjust Sprite Width and Sprite Height to match the size of a single frame.

4. Define Animations:

A. Auto-Detect Mode

  • Choose the animation layout (Horizontal or Vertical).
  • (Optional) Set "Frames Per Anim" to split longer strips into multiple animations.
  • Click Auto Detect Animations – magic happens! ✨

B. Manual Mode

  • Click & drag to draw rectangles around animation frames.

5. Fine-Tune Your Animations (Optional):

  • Rename: Click an animation’s name label (e.g., "Anim1") to rename it.
  • Delete: Right-click an animation's outline to remove it.

6. Generate Nodes:

  • Open a scene in Godot.
  • Click Generate Nodes and watch your sprite come to life! πŸŽ‰

πŸ“œ License

This project is licensed under MIT – use it freely in your games! πŸš€
